Friday, August 31, 2012

Waterproof Backup Camera with 12 Infrared LEDs and 180° Super Wide Angle


Model Number: CW-635-1 / 3" B/W CCD SENSOR


Key Specifications/Special Features:
  • Features:
    • Super wide angle (180°)
    • Automatic heating when the camera’s running temperature is below 10℃ (optional)
    • Selectable distance label for opening and closing
    • Waterproof and weather-resistant housing for outdoor use
    • Night vision available, day/night sensor for automatic adjustment
    • IR distance: approximately 10m
    • Infrared LED light: 12
    • Mirror/normal image switch (depending on the chips)
  • 1/3-inch B/W CCD sensor specifications:
    • With audio and IR
    • Image device: LG
    • TV system: CCIR/EIA
    • Effective pixels: 500 x 582 pixels and 510 x 492 pixels
    • Sensing area: 4.9 x 3.7mm
    • Scanning system: 2:1 interlace
    • Synchronization system: internal
    • Resolution: 420TVL
    • Minimum illumination: 0.05 lux/F1.2 (0 lux/F1.2 with IR)
    • Horizontal synchronization resolution: 15,625/15,734kHz
    • Vertical synchronization resolution: 50/60Hz
    • Video output: 1.0vp-p, 75Ω
    • Microphone: optional
    • Gamma consumption: 0.45
    • AGC: auto
    • S/N ratio: better than 48dB
    • White balance: auto
    • Electronic shutter: 1/50 (CCIR) and 1/60, (EIA) to 1/10,000 seconds
    • BLC: auto
    • Current consumption: maximum 390mA
    • Power supply: 12V DC
    Payment Details:
    • Payment Terms:
      • Telegraphic Transfer in Advance (Advance TT, T/T)
    • Minimum Order:
      • 1 to 99 Pieces
    Delivery Details:
    • FOB Port:
      • Guangzhou
    • Lead Time:
      • 15 - 30 days

SharpVision-Top Night-vision cameras Wireless CCTV System China Manufacturer

Waterproof Camera with 15m IR Distance and Weatherproof Housing for Outdoor Use


Model Number: CW-073-1/3″Super HAD CCD


Key Specifications/Special Features:
  • Feature:
    • Waterproof and weatherproof housing for outdoor use
    • Night vision is available
    • Day/night sensor for automatic adjustment
    • IR distance: 15m
    • Infrared LED light: 18pcs
    • Mirror/normal image switch
    • Distance label selectable to be open or closed
  • Specifications:
    • Image device: 1/3-inch Sony Super HAD CCD
    • TV system: PAL/NTSC
    • Total number of pixels:
      • PAL: 537 (H) x 597 (V)
      • NTSC: 537 (H) x 505 (V)
    • Effective pixels:
      • PAL: 500 (H) x 582 (V)
      • NTSC: 510 (H) x 492 (V)
    • Sensing area: 4.9 (H) x 3.7mm (V)
    • Synchronization system: internal
    • Resolution: 420TVL
    • Minimum illumination: 0 lux (infrared lamps on), 0.05lux (day)/F1.2
    • Microphone: optional
    • Video output: composite signal (1.0Vp-p, 75Ω)
    • Gamma correction: 0.45
    • AGC: on
    • S/N ratio: better than 48dB
    • White balance: auto
    • Electronic shutter: 1/50 to 1/100,000sec or 1/60 to 1/100,000sec
    • BLC: auto
    • Current consumption: 300mA
    • Power supply: 12V DC
    • Operating temperature: -20 to 70℃, 95% RH maximum
    • Storage temperature: -40 to 80℃, 95% RH maximum
    • Lens: 2.8 or 3.6mm optional
    • Lens angle: 120/92°
    Payment Details:
    • Payment Terms:
      • Telegraphic Transfer in Advance (Advance TT, T/T)
    • Minimum Order:
      • 1 to 99 Pieces
    Delivery Details:
    • FOB Port:
      • Guangzhou
    • Lead Time:
      • 15 - 30 days


SharpVision-Top Night-vision cameras Wireless CCTV System China Manufacturer

Waterproof Camera with 8m IR Distance, Mirror/Normal Image Switch and Infrared LED light


Model Number: CW-073-1 / 4'' COLOR CMOS SENSOR

Key Specifications/Special Features:
  • With waterproof and weather-resistant housing for outdoor use
  • Embedded-type, specially designed for car rear-view systems
  • With night vision functions
  • IR distance: 8m
  • Day/night sensor for automatic adjustment
  • 1/4-inch color CMOS sensor
  • Image device: 1/4-inch PC 1030N
  • TV system: PAL/NTSC
  • Effective pixels: 648 x 488 pixels
  • Sensing area: 3.6 x 2.7mm
  • Scanning system: 2:1 interlace
  • Synchronizations system: internal
  • Resolution: 420TVL
  • Minimum illumination: 0.3 lux (day), 0 lux (with IR)
  • Microphone: supported
  • Video output: 1.0vp-p, 75Ω
  • Gamma consumption: 0.45
  • AGC: auto
  • S/N ratio: better than 48dB
  • White balance: auto
  • Electronic shutter: 1/50 (PAL)/1/60 (NTSC) to 1/100,000 seconds
  • BLC: auto
  • Current consumption: maximum 150mA
  • Power supply: DC 12V
  • Connection: RCA/4pin DIN
  • Anti-vibration: 10g
  • Operating temperature: -20 to 70°C, RH 95% maximum
  • Storage temperature: -30 to 80°C, RH 95% maximum
  • Lens: f = 2.5mm, F = 2.0
  • Lens angle: 120°
Payment Details:
  • Payment Terms:
    • Telegraphic Transfer in Advance (Advance TT, T/T)
  • Minimum Order:
    • 1 to 99 Pieces
Delivery Details:
  • FOB Port:
    • Guangzhou
  • Lead Time:
    • 15 - 30 days

SharpVision-Top Night-vision cameras Wireless CCTV System China Manufacturer

Waterproof Camera with Audio and IR, Selectable Distance Label for Opening/Closing


Model Number: CW-073-1 / 4" COLOR CCD SENSOR


Key Specifications/Special Features:
  • Camera features:
    • Waterproof and weather-resistant housing for outdoor use
    • Night vision available, day/night sensor for automatic adjustment
    • IR distance: 15m
    • Infrared LED light: 18
    • Mirror/normal image switch (depending on the chips)
    • Selectable distance label for opening and closing
  • 1/4-inch color CCD sensor specifications:
    • With audio and IR
    • Image device: Sharp
    • TV system: PAL/NTSC
    • Effective pixels: 512 x 582 and 512 x 492 pixels
    • Sensing area: 3.6 x 2.7mm
    • Scanning system: 2:1 interlace
    • Synchronization system: internal
    • Resolution: 420TVL
    • Minimum illumination: 0 lux/F1.2 with IR
    • Horizontal synchronization frequency: 15.625/15.734kHz
    • Vertical synchronization frequency: 50/60Hz
    • Video output: 1.0vp-p, 75Ω
    • Microphone: optional
    • Gamma consumption: 0.45
    • AGC: auto
    • S/N ratio: better than 48dB
    • White balance: auto
    • Electronic shutter: 1/60 (NTSC) and 1/50 (PAL) to 1/10,000 seconds
    • BLC: auto
    • Current consumption: maximum 300mA
    • Power supply: 12V DC
    • Operating temperatures: -20 to 70°C, 95% RH, maximum
    • Storage temperatures: -40 to 80°C, 95% RH, maximum
    • Lens: f = 3.6/2.8mm, f = 2.0
    • Lens angle: 69°
    Payment Details:
    • Payment Terms:
      • Telegraphic Transfer in Advance (Advance TT, T/T)
    • Minimum Order:
      • 1 to 99 Pieces
    Delivery Details:
    • FOB Port:
      • Guangzhou
    • Lead Time:
      • 15 - 30 days

SharpVision-Top Night-vision cameras Wireless CCTV System China Manufacturer

IR Waterproof Camera with Day/Night Sensor for Automatic Adjustment, Night Vision Available


Model Number: CW-071-1 / 3" COLOR CCD SENSOR


Key Specifications/Special Features:
  • Features:
    • Waterproof and weatherproof housing for outdoor use
    • Night vision is available
    • Day/night sensor for automatic adjustment
    • Mirror/normal image switch
    • IR distance: 20m
  • Specifications:
    • Image device: 1/3-inch Sony super HAD CCD
    • TV system: PAL/NTSC
    • Total number of pixels:
      • PAL (H x V): 537 x 597 pixels
      • NTSC (H x V): 537 x 505 pixels
    • Sensing area (H x V0: 4.9 x 3.7mm
    • Synchronize system: internal
    • Resolution: 420 TVL
    • Illumination: 0 Lux (infrared lamps on) 0 .05 Lux (day)/F1.2 (minimum)
    • Microphone: optional
    • Video output: composite signal (1.0Vp-p, 75Ω)
    • Gamma correction: 0.45
    • AGC: on
    • S/N ratio: better than 48dB
    • White balance: automatic
    • Electronic shutter: 1/50 to 1/100,000 to 1/60-1/100,000 seconds
    • BLC: automatic
    • Current consumption: 300mA (maximum)
    • Power supply: 12V DC
    • Operating temperature: -20 to 70℃
    • Humidity: 95% RH (maximum)
    • Storage temperature: -40 to 80℃
    • Lens: 2.8mm, 3.6mm optional
    • Lens angle: 120, 92°
  • All trademarks shown here are for reference purposes only. They are the property of their respective owners, and we are not authorized to sell items bearing such trademarks.
Payment Details:
  • Payment Terms:
    • Telegraphic Transfer in Advance (Advance TT, T/T)
  • Minimum Order:
    • 1 to 99 Pieces
Delivery Details:
  • FOB Port:
    • Guangzhou
  • Lead Time:
    • 15 - 30 days

SharpVision-Top Night-vision cameras Wireless CCTV System China Manufacturer

IR Water-proof Camera with Mirror/Normal Image Switch and Day/Night Vision, 10m IR Distance


 Model Number: CW-635-1 / 4" COLOR CMOS SENSOR

Key Specifications/Special Features:
  • Features:
    • Wide angle: 180 degrees
    • Automatic heating when the cameras running temperature is below 10 degrees Celsius (optional)
    • Distance label selectable to be open or closed
    • Waterproof and weather resistant housing for outdoor uses
    • Night vision is available
    • Day/night sensor for automatic adjustment
    • IR distance: 10m
    • Infrared LED light: 12 pieces
    • Mirror/normal image switch (depending on the chips)
  • Specifications:
    • Image device: 1/4-inch PC 1030N
    • TV system: PAL/NTSC
    • Effective pixels: 648 x 488 pixels
    • Sensing area: 3.6 x 2.7mm
    • Scanning system: 2:1 interlace
    • Synchronize system: internal
    • Resolution: 420 TVL
    • Illumination: 0.3 Lux (day), 0 Lux (with IR) (minimum)
    • Microphone: yes
    • Video output: 1.0vp-p, 75 Ohms
    • Gamma consumption: 0.45
    • AGC: automatic
    • S/N ratio: better than 48dB
    • White balance: automatic
    • Electronic shutter:
      • PAL: 1/50 to 1/100,000 seconds
      • NTSC: 1/60 to 1/100,000 seconds
    • BLC: automatic
    • Current consumption: 150mA (maximum)
    • Power supply: 12V DC
    • Connection: RCA/4-pin DIN
    • Anti-vibration: 10g
    • Operating temperature: -20 to 70°C
    • Humidity: 95% RH (maximum)
    • Storage temperature: -30 to 80°C
    • Lens: f = 2.5mm, f = 2.0mm
    • Lens angle: 120°
Payment Details:
  • Payment Terms:
    • Telegraphic Transfer in Advance (Advance TT, T/T)
  • Minimum Order:
    • 1 to 99 Pieces
Delivery Details:
  • FOB Port:
    • Guangzhou
  • Lead Time:
    • 15 - 30 days

SharpVision-Top Night-vision cameras Wireless CCTV System China Manufacturer

Night Vision Waterproof Camera with 3-axis Bracket and 30m IR Distance


Model Number: CW-652-1/3″Super HAD CCD


Key Specifications/Special Features:
  • Features:
    • Waterproof and weather-resistant housing for outdoor uses
    • Excellent night vision
    • 3-axis bracket
    • Zoom lens: 4 to 9mm
    • Infrared LED light: 66 pieces
    • IR distance: 30m (approximately)
  • Specifications:
    • Color CCD sensor
    • Image device: 1/3-inch Sony super HAD CCD
    • TV system: PAL/NTSC
    • Total number of pixels:
      • PAL (H x V): 537 x 597 pixels
      • NTSC (H x V): 537 x 505 pixels
    • Effective pixels:
      • PAL (H x V): 500 x 582 pixels
      • NTSC (H x V): 510 x 492 pixels
    • Sensing area (H x V): 4.9 x 3.7mm
    • Synchronization system: internal
    • Resolution: 420TVL
    • Illumination: 0 Lux (infrared lamps on), 0.05 Lux (day)/F1.2 (minimum)
    • Microphone: optional
    • Video output: composite signal (1.0Vp-p, 75Ω)
    • Gamma correction: 0.45
    • AGC: on
    • S/N ratio: >48dB
    • Automatic white balance
    • Electronic shutter: 1/50 to 1/100,000 and 1/60 to 1/100,000 seconds
    • BLC: automatic
    • Current consumption: 500mA (maximum)
    • Power supply: 12V DC
    • Operating temperature: -20 to 70°C
    • Operating humidity: 95% RH (maximum)
    • Storage temperature: -40 to 80°C
    • Storage humidity: 95% RH (maximum)
    • Lens angle: 92/38°
  • All trademarks shown here are for reference purposes only. They are the property of their respective owners, and we are not authorized to sell items bearing such trademarks.
Payment Details:
  • Payment Terms:
    • Telegraphic Transfer in Advance (Advance TT, T/T)
  • Minimum Order:
    • 1 to 99 Pieces
Delivery Details:
  • FOB Port:
    • Guangzhou
  • Lead Time:
    • 15 - 30 days

SharpVision-Top Night-vision cameras Wireless CCTV System China Manufacturer

Waterproof Rear-view Camera with IR and Convenient Adjustable Angle


Model Number: CW-644-1 / 3" COLOR CCD SENSOR


Key Specifications/Special Features:
  • Features:
    • Compact profile
    • Waterproof and vandalproof
    • Convenient adjustable angle
    • Infrared LED light: 5
    • IR distance: 5m
    • High resolution
    • Multiple colors are optional: black, green, yellow, red, and silver
    • Can be mounted on rear, front, or either side of vehicles
  • Specifications:
    • 1/3-inch color CCD sensor
    • Image device: sharp
    • TV system: PAL/NTSC
    • Effective pixels: 512 x 582/512 x 492
    • Sensing area: 4.9 x 3.7mm
    • Scanning system: 2:1 interlace
    • Synchronization system: internal
    • Resolution: 420TVL
    • Horizontal synchronization frequency: 15.625kHz/15.734kHz
    • Vertical synchronization frequency: 50Hz/60Hz
    • Minimum illumination: 0 lux (infrared lamps on), 0.1 lux (day)/F1.2
    • Video output: 1.0vp-p, 75Ω
    • Gamma consumption: 0.45
    • AGC: auto
    • S/N ratio: >48dB
    • White balance: auto
    • Electronic shutter:
      • NTSC: 1/60 to 1/10,000 seconds
      • PAL: 1/50 to 1/10,000 seconds
    • BLC: auto
    • Current consumption: 150mA (maximum)
    • Power supply: 12V DC
    • Operating temperature: -20 to 70°C, 95% RH (maximum)
    • Storage temperature: -40 to 80°C, 95% (maximum)
    • Lens: 2.8mm, 3.6mm (optional)
    • Lens angle: 120°, 92°
    Payment Details:
    • Payment Terms:
      • Telegraphic Transfer in Advance (Advance TT, T/T)
    • Minimum Order:
      • 1 to 99 Pieces
    Delivery Details:
    • FOB Port:
      • Guangzhou
    • Lead Time:
      • 15 - 30 days

SharpVision-Top Night-vision cameras Wireless CCTV System China Manufacturer

Night-vision Camera with 72 Infrared LED Lights and 1/3-inch B/W CCD Sensor


Model Number: CW-625-1 / 3" B/W CCD SENSOR

Key Specifications/Special Features:
  • Features:
    • Waterproof and weather-resistant housing for outdoor use
    • IR distance: 35m (approximately)
    • Infrared LED light: 72
    • Multiple brackets are available
  • Specifications:
    • 1/3-inch B/W CCD sensor
    • With audio and IR
    • Image device: LG Ai329/LG Ai325
    • TV system: CCIR/EIA
    • Effective pixels:
      • PAL (H x V): 500 x 582 pixels
      • NTSC (H x V): 510 x 492 pixels
    • Total pixels:
      • PAL (H x V): 537 x 582 pixels
      • NTSC (H x V): 510 x 492 pixels
    • Pixel size: 9.8 x 6.3/9.65 x 7.5
    • Scanning system: 2:1 interlace
    • Synchronization system: internal
    • Resolution: 420TVL
    • Horizontal synchronization frequency: 15.625/15.734kHz
    • Vertical synchronization frequency: 50/60Hz
    • Illumination: 0 Lux/F1.2 (minimum)
    • Video output: 1.0Vp-p, 75Ω
    • Gamma correction: 0.45
    • AGC: automatic
    • S/N ratio: >48dB
    • Automatic white balance
    • Electronic shutter:
      • CCIR: 1/50 to 1/100,000 seconds
      • EIA: 1/60 to 1/100,000 seconds
    • BLC: automatic
    • Power supply: 12V DC
    • Operating temperature: -10 to 60°C, 95% RH (maximum)
    • Storage temperature: -30 to 80°C, 95% RH (maximum)
    • Lens: F = 6.0/F = 2.0
    • Lens angle: 69 degrees
  • All trademarks shown here are for reference purposes only. They are the property of their respective owners, and we are not authorized to sell items bearing such trademarks.
Payment Details:
  • Payment Terms:
    • Telegraphic Transfer in Advance (Advance TT, T/T)
  • Minimum Order:
    • 1 to 99 Pieces
Delivery Details:
  • FOB Port:
    • Guangzhou
  • Lead Time:
    • 15 - 30 days

SharpVision-Top Night-vision cameras Wireless CCTV System China Manufacturer

Monday, August 27, 2012

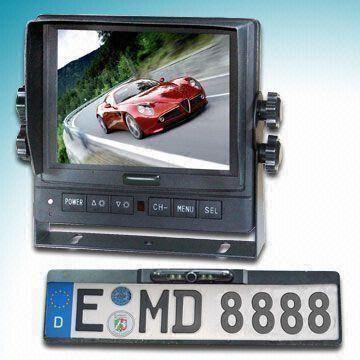

Wireless License Plate Camera with 2.4GHz Wireless Transmitting Power Box and Wireless Receiver Box


 Model Number: DF-8027IRW-1


Key Specifications/Special Features:
  • Free voltage DC11-32 volts wireless backup color camera view Angel (up and down)
  • Backup camera built-in 8pcs LEDs for night vision (10M) and IP66 waterproof design
  • Power controller built-in 2.4GHz wireless video transmitter
  • Receive control box built-in 2.4GHz wireless receiver
  • Car wireless rear view camera, 1/3 inch color CMOS OV7949 380 TV lines for car backup/reversing camera system
  • Model: DF-8027IRW
  • Image pick-up device: 1/3-inch color CMOS OV7949
  • Horizontal resolution: 380 TV Lines
  • Number of pixels:
    • NTSC: 510 (H) x 492 (V)
    • PAL: 628 (H) x 582 (V)
  • Scanning system:
    • NTSC: 525 lines, 60 field/sec
    • PAL: 625 lines, 50 field/sec
  • Sync system: internal synchronization
  • Gamma characteristic: 0.45
  • S/N ratio: ≥48dB (AGC Off)
  • Electronic shutter time:
  • On: NTSC 1/60 to 1/100,000 seconds, PAL 1/50 to 1/100,000 seconds
  • Off: NTSC 1/60 seconds, PAL 1/50 seconds
  • Usable illumination: 1 lux (F: 2.0)
  • IR project distance: 5 meters (8 units Infrared LED)
  • Video Output: 1.0Vp-p 75 ohm
  • Gain Control (AGC): automatic
  • Cable: BNC jack
  • Water resistance: IP66
  • Operation temperatures: -10℃ - +50℃ RH95% max
  • Storage temperatures: -20℃ - +60℃ RH95% max
  • Power supply: 12 to 24V DC
  • Dimensions: 260 (L) x 32 (D)mm
  • Weight: 75g
Payment Details:
  • Payment Terms:
    • T/T in Advance, L/C at Sight

Veise-Top Wireless CCTV cameras China manufacturer

Wireless Surveillance Camera with Build-in Transmitter + Additional Video Audio Wireless Receiver


Model Number: DF~8073W


Key Specifications/Special Features:
  • 2.4GHz wireless transmitter camera
  • Image type: 1/3-inch color Sharp CCD
  • Resolution:
    • PAL (H x V): 500 x 582 pixels
    • NTSC (H x V): 510 x 492 pixels
  • Transmission power: 10mW/CE, 2mW/FCC
  • Estimate of 100 meter wireless send distance without block
  • Color system: PAL/NTSC
  • Video input: 1.0Vp-p 75Ω
  • Shockproof: 10G
  • Waterproof: IP66
  • Free operating voltage: 11 to 32V DC
  • Dimensions (W x H x D): 71 x 51 x 48mm (without mounting)
  • Weight: 250g
  • 2.4GHz wireless receiver
  • Built-in 4-channel (2.414/2.432/2.450/2.468GHz) wireless receiving
  • Receiving sensitivity: ≤-80dBm
  • Color system: PAL/NTSC
  • Video output: 1.0Vp-p 75Ω
  • Operating temperature: -20 to +50°C
  • Storage temperature: -30 to +80°C
  • Power supply: 12V DC
  • External dimension (L x W x T): 38 x 28 x 18mm
  • Weight: 50g
  • All trademarks shown here are for reference purposes only. They are the property of their respective owners, and we are not authorized to sell items bearing such trademarks.
Payment Details:
  • Payment Terms:
    • T/T in Advance, L/C at Sight

Veise-Top Wireless CCTV cameras China manufacturer

Video Farm Surveillance Camera System with Wireless 7-inch Monitor and Dual Auto Shutter Camera


Model Number: DF~7260412

Key Specifications/Special Features:
  • Wireless reversing camera system free
  • Operating voltages: 11 to 32V DC
  • Suitable for trailer, car, truck, bus, SUV, motor home, boat and farm CCTV camera system
  • Built-in 4-channel, 2.4GHz wireless receiver and day/night sensor for illumination of the control knobs
  • Built-in IR LED
  • Water-resistance: IP66
  • Built-in CDS sensor for illumination of the control knobs
  • Image type: 1/3-inch color sharp CCD
  • Horizontal resolution: 420TVL
  • Effective pixels:
    • NTSC: 510 x 492 pixels
    • PAL: 500 x 582 pixels
  • Usable illumination: 0 lux (15 pieces of LEDs for night vision at 10m)
  • Free viewing angle: 130°
  • Waterproof: IP68
  • Shockproof: 10g
  • Video output: 1.0Vp-p, 75W
  • Power supply: 12 to 24V DC from reversing monitor
  • Dimensions: 69 x 43 x 38mm (without mounting)
  • 7-inch TFT LCD reversing monitor
  • 7-inch color reversing monitor with removable sun visor
  • Setup the camera image normal or mirror
  • With three video input, set up the priority of reverse camera
  • Setting up the reversing image delay time: 0 to 30 seconds
  • Responding time less than 2-inch when reversing
  • Color system: PAL/NTSC
  • Display resolutions: 480 x 234 dots
  • Wide viewing angle (cr>10):
    • Up/down: 45 to 65°
    • Left/right: 65 to 65°
  • Brightness: 300cd/m²
  • Contrast ratio: 500:1
  • Backlight: single LED
  • Operating temperatures: -20 to 70°C
  • Storage temperatures: -30 to +80°C
  • Power supply: 11 to 32V DC
  • External dimensions: 180 x 118 x 23mm
Payment Details:
  • Payment Terms:
    • T/T in Advance oe L/C at Sight

Veise-Top Wireless CCTV cameras China manufacturer

Agricultural Vehicles Reversing CCTV System with 2 Wireless Cameras FPR Tractors Trailers Harvester


Model Number: DF5260312V

Key Specifications/Special Features:
  • Specifications:
    • Wireless transmission: 2.4GHz farm CCTV camera with 18 pieces of LEDs for night vision
    • Waterproof IP66 for outdoor use
    • Operating voltage: 11 to 32V DC
    • Built in 2.4GHz transmitter
    • Image type: 1/3-inch color sharp CCD
    • Horizontal resolution: 420TVL
    • Effective pixels:
      • NTSC (H x V): 540 x 492 pixels
      • PAL (H x V): 500 x 582 pixels
    • Illumination: 0 Lux
    • Viewing angle: 130 degrees
    • Water-proof: IP68
    • Shockproof: 10G
    • Estimate of 100m wireless send distance without block
    • Power supply: 12V to 24V DC
    • Dimensions (W x H x D): 69 x 43 x 38mm
    • 5-inch wireless farm CCTV system monitor
    • 5-inch digital screen TFT LCD monitor with removable sun visor
    • Built-in 4-channel 2.4GHz wireless receiver
    • Setting up the camera image normal or mirror
    • With three video input, set up the priority of reverse camera
    • Reversing image delay time: 0 to 30 seconds
    • Color system: PAL and NTSC
    • Display resolution (H x V): 960 x 234 dots
    • Wide viewing angle (CR≥10):
      • Up/down: 45 to 65 degrees
      • Left/right: 65 to 65 degrees
    • Brightness: 300cd/m2
    • Contrast ratio: 500:1
    • Backlight: single LED
    • Operating temperature: -20 to +70 degrees Celsius
    • Storage temperature: -30 to +80 degrees Celsius
    • Power supply: 11 to 32V DC
    • External dimension (L x W x T): 150 x 118 x 23mm
    • Net weight: 279g
  • All trademarks shown here are for reference purposes only. They are the property of their respective owners, and we are not authorized to sell items bearing such trademarks.
Payment Details:
  • Payment Terms:
    • T/T in Advance and L/C at Sight

Veise-Top Wireless CCTV cameras China manufacturer

2.4GHz Wireless CCTV Camera with 1/3-inch Color CMD, Suitable for Wired Rear-view Systems


 Model Number: DF-8075W


Key Specifications/Special Features:
  • 2.4GHz wireless transmission camera (DF-4105HFS)
  • Image type: 1/3-inch color CMD
  • Horizontal resolution: 480TVL
  • Resolution pixels:
    • PAL (H x V): 720 x 586 pixels
    • NTSC (H x V): 720 x 480 pixels
  • Transmission power: 10mW/CE and 2mW/FCC
  • Estimate of 100m wireless send distance without block
  • Color systems: PAL and NTSC
  • Shockproof: 10G
  • Waterproof: IP68
  • Free operating voltage: 11 to 32V DC
  • Dimensions (W x H x D): 71 x 51 x 48mm (without mounting)
  • Weight: approximate 250g
  • 2.4GHz wireless receiver
  • Built-in 4CH (2.414, 2.432, 2.450 and 2.468GHz) wireless receiver
  • Receiving sensitivity: ≤80dBm
  • Video output: 1.0Vp-p 75Ω
  • Operating temperature: -20 to +50°C
  • Storage temperature: -30 to +80°C
  • Power supply: 11 to 32V DC
  • External dimensions (L x W x T): 38 x 28 x 18mm
  • Weight: approximate 50g
  • Product accessory: user's manual
Payment Details:
  • Payment Terms:
    • T/T in Advance or L/C at Sight

Veise-Top Wireless CCTV cameras China manufacturer

Wireless CCTV Camera with Monitor, High Resolution Night Vision and Waterproof for Waster-truck


 Model Number: DF-7260161V


Key Specifications/Special Features:
  • 2.4GHz wireless transmission backup camera
  • Monitor, high resolution night vision
  • Waterproof for waster-truck
  • Image type: 1/4-inch color Sharp CMD
  • Horizontal resolution: 480TVL
  • Effective pixels:
    • NTSC (H x V): 720 x 492 pixels
    • PAL (H x V): 700 x 582 pixels
  • Usable illumination: 0 Lux (built-in 18 IR LED on)
  • Free viewing angle: 130 degrees
  • Transmission power: 10mW (estimate of 100-meter wireless send distance without block)
  • Shockproof: 10G
  • Waterproof: IP68
  • Operating temperature: -10 to 50 degrees Celsius
  • Storage temperature: -20 to 60 degrees Celsius
  • Humidity: 95% RH maximum
  • Free operating voltage: 11 to 32V DC
  • Dimension (W x D x H): 75 x 45 x 75mm
  • Weight: 200g
  • 7-inch wireless receiving TFT LCD monitor
  • Display resolution (H x V): 2400x 480 dots
  • Wide viewing angle (CR>10Ra):
    • Up/down: 45/65 degrees
    • Left/right: 65/65 degrees
  • Brightness: 300cd/m%
  • Contrast ratio: 300:1
  • Color system: PAL/NTSC
  • Built-in 4CH (2.414/2.432/2.450/2.468GHz) wireless receivers
  • Receiving sensitivity: ≤85dB
  • Responding time less than 2s when reversing
  • 4 image switch automatically, shift time 0 to 30 inches
  • Auto mirror image video when reversing
  • Operating temperature: -20 to +70 degrees Celsius
  • Storage temperature: -30 to +80 degrees Celsius
  • Power consumption: 11 to 32V DC
  • External dimension (L x W x T): 110 x 77 x 23mm
  • Weight: 179g
  • Product accessories: monitor bracket, auto cigarette lighter, remote control, user's guide
  • All trademarks shown here are for reference purposes only. They are the property of their respective owners, and we are not authorized to sell items bearing such trademarks.
Payment Details:
  • Payment Terms:
    • T/T in Advance, L/C at Sight

Veise-Top Wireless CCTV cameras China manufacturer

About US-Veise

Veise Electronics Co Ltd

Veise (Guangzhou) electronic limited is a professional and high-tech company who specializes in rear view system, CCTV camera and TFT-LCD reversing monitor. We apply the energy-saving and low carbon-consumption techniques to the producing process, and get the CE, FCC and RoHS certificates. We stick to the principles of "honesty, high quality and good service". Perfect product design, strict quality control and ISO 9001:2000 producing standard and competitive price bring us large market occupation and reputation in the US, Europe, Australia, Russia, the United Arabic, China, Singapore and other areas around the world in the CCTV filed from the very beginning since 1997.

Our producing capacity of the rear view backup camera system is 30,000 monitors and 40,000 cameras per month. The order-ship time is two to four weeks without special requirements. We have professional engineers with more than 10 years experience in designing and developing waterproof IR CCD cameras and rear view monitors. With a complete series of inspection equipment and quality management system, all the products will be passed through waterproof, vandal proof, high temperature and wide working voltage (DC11-32V) tests before shipment. More than 90% materials are from Japan, the US and we do our best to be a modernized factory, what's more, we ensure your goods under warranty for a long time: two years for monitor and one year for camera. Contact us today.


Veise-Top Wireless CCTV cameras China manufacturer

Contact US-Veise

Veise Electronics Co Ltd

3F, No.18th, Huayuan St.,
Shatai Rd., Baiyun District,
Guangzhou
Guangdong
China  510510

Tel:  (86 20) 87233348  Ext : 816  (86 20) 87233730  Ext : 816

Fax:  (86 20) 87233260

Site: http://www.veise.com


Veise-Top Wireless CCTV cameras China manufacturer

Car Rear-view Camera Systems with 5-inch TFT LCD Color Monitor and Digital Screen


Model Number: MO-119D, CW-086


Key Specifications/Special Features:
  • 5 inches TFT LCD color monitor with digital screen
  • Control the monitor with finger tips on the touch button system
  • TFT LCD monitor with wide view angle and high-resolution display
  • Picture image adjustable for horizontal, vertical, mirror, and normal viewing
  • 8 languages selectable for user operating
  • Automatic backlighting for buttons
  • Full-function remote control
  • Multiple video formats available: auto/PAL/NTSC
  • Up to 3 AV inputs
  • On-board speaker
  • Operates from 10 to 32V
  • Supports 12 or 24V automobile battery amera views
  • Audio output: 1W
  • Loudspeaker: one 4.0cm round loudspeaker
  • Automatically switches to back-up, left or right side c
  • Power supply: automobile storage battery (10 to 32V)
  • Power consumption: about 5W
  • Outer dimension (W x H x T): 156 x 107 x 32mm
  • Dot pitch(H x V): 0.0529 x 0.1587
  • Resolution: 640 x 3 x 480 RGB
  • Color depth: 24-bit
  • Display colors: 16.7M dithering
  • Contrast: 500:1
  • Brightness: 200cd/m2
  • Viewing angle:
    • Up: 50°
    • Down: 70°
    • Right: 70°
    • Left: 70°
  • Operating temperature: -20ºC to +70ºC and 90% RH
  • Storage temperature: -30ºC to +80ºC and 90% RH
  • Rear view camera features:
    • Waterproof and weather resistant housing for outdoor use
    • Night vision available, day/night sensor for automatic adjustment
    • IR distance: 22m
    • Infrared LED light: 28
    • Mirror/normal image switch (depending on the chips)
    • Distance label selectable to be open or closed
  • All trademarks shown here are for reference purposes only. They are the property of their respective owners, and we are not authorized to sell items bearing such trademarks.
Payment Details:
  • Payment Terms:
    • Letter of Credit (LC, L/C)
  • Minimum Order:
    • 1 to 99 Pieces
Delivery Details:
  • FOB Port:
    • Guangzhou
  • Lead Time:
    • 15 - 30 days


SharpVision-Leading Rear View Car Camera System China Manufacturer

Car Backup System with Waterproof Camera, Easy to Install and Super Wide Angle


 Model Number: MO-115D, CW-634


Key Specifications/Special Features:
  • Backup camera:
    • Night vision
    • Waterproof camera
    • Easy to install
    • Super wide angle (180° )
    • Super low illumination
    • Distance label selectable to be open or closed
    • Black and silver housing are available
  • Rear view monitor:
    • 5.6-inch TFT LCD color rear view monitor with digital screen
    • TFT LCD monitor with wide viewing angle and high resolution display
    • Picture image may be adjusted for horizontal, vertical, mirror and normal viewing
    • Eight languages selectable for user operation
    • Automatic backlights for buttons
    • Full-function remote controller
    • Multiple video formats: auto, PAL and NTSC
    • 13-pin: three camera inputs
    • 22-pin: four camera inputs, video output and audio output
    • Operating voltage: 10 to 32V
    • Supports 12/24V automobile battery
    • Automatically switches to backup, left or right side camera views
    • Speaker is available and users can control the sound level from control panel
    • The logo displays on the monitor when switched on and disappears while there is video signal
    • Auto switch off if video signal lost in three minutes
Payment Details:
  • Payment Terms:
    • Letter of Credit (LC, L/C)
  • Minimum Order:
    • 1 to 99 Pieces
Delivery Details:
  • FOB Port:
    • Guangzhou
  • Lead Time:
    • 15 - 30 days


SharpVision-Leading Rear View Car Camera System China Manufacturer

Car Rear-view System with 7-inch Digital Touch Button Monitor and Rear-view Camera


Model Number: MO-121D, CS-404, CW-087

Key Specifications/Special Features:
  • 7 inches TFT LCD color rear-view monitor with digital screen
  • TFT LCD monitor with wide view angle and high resolution display
  • Picture image may be adjusted for horizontal, vertical, mirror and normal viewing
  • Eight languages selectable for user operation
  • Automatic back-lights for buttons
  • Full-function remote controller
  • Multiple video formats available: auto, PAL, and NTSC
  • 13-pin: three camera inputs
  • 22-pin: four camera inputs, one video output and audio output
  • Operates from 10 to 32V
  • Supports 12 to 24V automobile battery
  • Automatically switches to backup, left or right side camera views
  • Side view camera CS-404:
    • Vandal and waterproof
    • Convenient angle adjustment
    • Infrared LED light: 5 pieces
    • IR distance: 5m
    • High-resolution
    • Multiple colors are optional: black, green, yellow, red, and silver
    • Can be mounted on rear or either side of vehicles
  • Rear view camera CW-087:
    • Waterproof and weather-resistant housing for outdoor use
    • Night vision available, day/night sensor for automatic adjustment
    • IR distance: 15m
    • Infrared LED light: 18 pieces
    • Mirror/normal image switch (depending on the chips)
    • Distance label selectable to be open or closed
  • All trademarks shown here are for reference purposes only. They are the property of their respective owners, and we are not authorized to sell items bearing such trademarks.
Payment Details:
  • Payment Terms:
    • Telegraphic Transfer (TT,T/T)
  • Minimum Order:
    • 1 to 99 Pieces
Delivery Details:
  • FOB Port:
    • Guangzhou
  • Lead Time:
    • 15 - 30 days


SharpVision-Leading Rear View Car Camera System China Manufacturer

Car Rearview System with Weatherproof Touch Buttons Monitor and Car Rearview Camera


Model Number: MO-125D, CW-087


Key Specifications/Special Features:
  • Touch button monitor features:
    • Waterproof resistant: IP67
    • Picture image may be adjusted for horizontal, vertical, mirror and normal viewing, menu characters won’t be reversed when mirror image is set
    • 8 languages are available to select
    • Automatic backlighting for screen, automatic adjust to the brightness of environment
    • System format: NTSC/PAL/automatic
    • Four cameras with trigger lines, when the camera is triggered, the picture switches to the triggered camera automatically
    • Auto scan, scan channel and time can be set according to user’s need
    • Reverse warning yardstick, can be adjusted up and down, left and right
    • Easy installation and convenient use, with innovative functions
    • Can be used both in vehicle, shipment surveillance and security monitor in the open air
    • 13-pin: up to 3 AV inputs
    • Three cameras input on the rear and one A/V input on the front panel
    • 22-pin: up to 4 AV inputs, 1 video output and 1 audio output
  • Infrared car camera features:
    • Waterproof and weather resistant housing for outdoor use
    • Night vision available, day/night sensor for automatic adjustment
    • IR distance: 15m
    • Infrared LED light: 18
    • Mirror/normal image switch (depending on the chips)
    • Distance label selectable to be open or closed
Payment Details:
  • Payment Terms:
    • Telegraphic Transfer in Advance (Advance TT, T/T)
  • Minimum Order:
    • 1 to 99 Pieces
Delivery Details:
  • FOB Port:
    • Guangzhou
  • Lead Time:
    • 15 - 30 days

SharpVision-Leading Rear View Car Camera System China Manufacturer

Car Reversing Camera System with 5-inch Touch Button Monitor and Rear-view Camera


Model Number: MO-119D, CS-404, CW-639


Key Specifications/Special Features:
  • Reversing camera features: CW-639
  • Super wide angle (180)
  • Automatic heating when the camera's running temperature is below 10℃ (optional)
  • Distance label selectable to be open or closed
  • Waterproof and weather-resistant housing for outdoor use
  • Excellent night vision
  • IR distance: 10m
  • Infrared LED light: 12
  • Mirror/normal image switch (depending on the chips)
  • Side view camera CS-404
  • Compact profile
  • Waterproof and vandal-proof
  • Convenient angle adjustment
  • Infrared LED light: five
  • IR distance: 5m
  • High-resolution
  • Multiple colors are optional: black, green, yellow, red, and silver
  • Can be mounted on rear or either side of vehicles
  • 5-inch TFT LCD color monitor with digital screen
  • Control the monitor with finger tips on the touch button system
  • TFT LCD monitor with wide view angle and high resolution display
  • Picture image adjustable for horizontal, vertical, mirror, and normal viewing
  • Eight languages selectable for user operation
  • Automatic backlighting for buttons
  • Full-function remote control
  • Multiple video formats available: auto/PAL/NTSC
  • Up to three AV inputs
  • On-board speaker
  • Operates from 10 to 32V
  • Supports 12 or 24V automobile battery
  • Automatically switches to backup, left, or right side camera views
  • All trademarks shown here are for reference purposes only. They are the property of their respective owners, and we are not authorized to sell items bearing such trademarks.
Payment Details:
  • Payment Terms:
    • Letter of Credit at Sight (Sight L/C)
  • Minimum Order:
    • 1 to 99 Pieces
Delivery Details:
  • FOB Port:
    • Guangzhou
  • Lead Time:
    • 15 - 30 days


SharpVision-Leading Rear View Car Camera System China Manufacturer

Car Reverse Camera System with 7-inch Digital Touch Button Monitor and Reversing Cameras


Model Number: MO-121D, CW-086, CS-404


Key Specifications/Special Features:
  • Touch button monitor:
    • 7 inches TFT LCD color monitor with digital screen
    • Automatic backlighting for buttons
    • Control the monitor with finger tips on the touch button system
    • TFT LCD monitor with wide view angle and high-resolution display
    • Picture image may be adjusted for horizontal, vertical, mirror and normal viewing
    • Multi-languages display available: English, French, Portuguese, Spanish, Russian, Dutch, German, and Italian
    • Mirror and normal image switch available
    • Full-function remote controller
    • Multiple video formats available: PAL/auto/NTSC
    • 13-pin: three cameras inputs
    • 22-pin: four cameras inputs, one video output, and one audio output
    • Operates from 10 to 32V
    • Supports 12 or 24V automobile battery
    • Built-in speaker
    • Automatically switches to back-up, left, or right side camera views
  • Reversing camera CW-086
    • Waterproof and weather-resistant housing for outdoor use
    • Night vision available, day/ night sensor for automatic adjustment
    • IR distance: 22m
    • Infrared LED light: 28
    • Mirror/normal image switch (depending on the chips)
    • Distance label selectable to be open or closed
  • Side view camera CS-404
    • Compact profile
    • Waterproof and vandal proof
    • Convenient angle adjustment
    • Infrared LED light: five
    • IR distance: 5m
    • High-resolution
    • Multiple colors are optional: black, green, yellow, red, and silver
    • Can be mounted on rear or either side of vehicles
  • All trademarks shown here are for reference purposes only. They are the property of their respective owners, and we are not authorized to sell items bearing such trademarks.
Payment Details:
  • Payment Terms:
    • Telegraphic Transfer (TT,T/T)
  • Minimum Order:
    • 1 to 99 Pieces
Delivery Details:
  • FOB Port:
    • Guangzhou
  • Lead Time:
    • 15 - 30 days


SharpVision-Leading Rear View Car Camera System China Manufacturer

Car Backup Camera System with 5.6-inch Car Monitor and IR Night Vision Function


Model Number: MO-115D, CW-086

Key Specifications/Special Features:
  • Car backup camera system:
    • 5.6-inch TFT LCD color rear-view monitor with digital screen
    • With wide viewing angle and high resolution display
    • Picture image may be adjusted for horizontal, vertical, mirror, and normal viewing
    • Eight languages selectable for user operation
    • Automatic backlight for buttons
    • Full-function remote controller
    • Multiple video formats available: auto/PAL/NTSC
    • 13-pin: three camera inputs
    • 22-pin: four camera inputs, one video output, and one audio output
    • Works with 10 to 32V voltages
    • Supports 12 or 24V automobile battery
    • Automatically switches to backup, left or right side camera views
    • Speaker available and users can control the sound level from control panel
    • Logo displays on the monitor when switched on, and disappears while there is video signal
    • Auto switch off if video signal lost in three minutes
  • Backup camera:
    • Waterproof and weather resistant housing for outdoor use
    • Night vision available, day/night sensor for automatic adjustment
    • IR distance: 22m
    • Infrared LED light: 28
    • Mirror/normal image switch (depending on the chips)
    • Distance label selectable to be open or closed
Payment Details:
  • Payment Terms:
    • Telegraphic Transfer (TT,T/T)
  • Minimum Order:
    • 1 to 99 Pieces
Delivery Details:
  • FOB Port:
    • Guangzhou
  • Lead Time:
    • 15 - 30 days


SharpVision-Leading Rear View Car Camera System China Manufacturer

Car Rear-view Camera System with 5.6-inch TFT LCD Digital Monitor and Mini IR Camera


Model Number: MO-115D, CW-644, CS-404

Key Specifications/Special Features:
  • Rear-view monitor:
    • 5.6-inch TFT LCD color rear-view monitor with digital screen
    • TFT LCD monitor with wide viewing angle and high resolution display
    • Picture image may be adjusted for horizontal, vertical, mirror, and normal viewing
    • Eight languages selectable for user operation
    • Automatic backlight for buttons
    • Full function remote controller
    • Multiple video formats available: auto/PAL/NTSC
    • 13-pin: three cameras inputs
    • 22-pin: four cameras inputs, one video output, and one audio output
    • Operates from 10 to 32V
    • Supports 12 or 24V automobile battery
    • Automatically switches to backup, left, or right side camera views
    • Speaker available and users can control the sound level from control panel
    • The logo displays on the monitor when switched on, and disappears while there is video signal
    • Automatic switch off if video signal lost in three minutes
  • Rear-view camera: CW-644
    • Compact profile
    • Waterproof and vandalproof
    • Convenient angle adjustment
    • Infrared LED light: five
    • IR distance: 5m
    • High resolution
    • Multiple colors are optional: black, green, yellow, red, and silver
    • Can be mounted on rear, front, or either side of vehicles
  • Side view camera: CS-404
    • Compact profile
    • Waterproof and vandalproof
    • Convenient angle adjustment
    • Infrared LED light: 5
    • IR distance: 5m
    • High resolution
    • Multiple colors are optional: black, green, yellow, red, and silver
    • Can be mounted on rear or either side of vehicles
    Payment Details:
    • Payment Terms:
      • Telegraphic Transfer (TT,T/T)
    • Minimum Order:
      • 1 to 99 Pieces
    Delivery Details:
    • FOB Port:
      • Guangzhou
    • Lead Time:
      • 15 - 30 days

SharpVision-Leading Rear View Car Camera System China Manufacturer

Car Rear-view System with 5.6-inch Digital Car LCD Monitor, Works with 10 to 32V Voltages


 Model Number: MO-115D, CW-087


Key Specifications/Special Features:
  • Car rear-view system:
    • 5.6-inch TFT LCD color rear-view monitor with digital screen
    • With wide viewing angle and high resolution display
    • Picture image may be adjusted for horizontal, vertical, mirror, and normal viewing
    • Eight languages selectable for user's operation
    • Automatic backlight for buttons
    • Full function remote controller
    • Multiple video formats available: auto/PAL/NTSC
    • 13-pin: three cameras input
    • 22-pin: four cameras input, one video output, and one audio output
    • Works with 10 to 32V voltages
    • Supports 12V or 24V automobile battery
    • Automatically switches to backup, left or right side camera views
    • Speaker available and users can control the sound level from control panel
    • Logo displays on the monitor when switched on, and disappears while there is video signal
    • Auto switch off if video signal lost in three minutes
    • Audio output: 1W
    • Loudspeaker: one 4.0cm round loudspeaker
    • Power supply: automobile storage battery (10 to 32V), automobile adapter
    • Power consumption: about 5W
    • Outer dimensions:
      • Without flush mount: 145 x 136 x 31.5mm
      • With flush mount: 182 x 155 x 42.5mm
    • Dot pitch: 0.0588 x 0.1764
    • Resolution: 640 x RGB x 480 pixels
    • Contrast: 500:1
    • Brightness: 200cd/m2
    • Viewing angle:
      • Up: 50°
      • Down: 70°
      • Right/left: 70°
    • Operating temperatures: -20 to +70°C, 90% RH
    • Storage temperatures: -30 to +80°C, 90% RH
  • IR rear-view camera:
    • Waterproof and weather resistant housing for outdoor use
    • Night vision available, day/night sensor for automatic adjustment
    • IR distance: 15m
    • Infrared LED light: 18
    • Mirror/ normal image switch (depending on the chips)
    • Distance label selectable to be open or closed
Payment Details:
  • Payment Terms:
    • Letter of Credit (LC, L/C)
  • Minimum Order:
    • 1 to 99 Pieces
Delivery Details:
  • FOB Port:
    • Guangzhou
  • Lead Time:
    • 15 - 30 days


SharpVision-Leading Rear View Car Camera System China Manufacturer

5.6-inch Security Car Camera System with Digital LCD Monitor and Eye IR Camera


Model Number: MO-115D, CW-644

Key Specifications/Special Features:
  • Rear-view monitor:
    • 5.60-inch TFT LCD color rearview monitor with digital screen
    • TFT LCD monitor with wide view angle and high resolution display
    • Picture image may be adjusted for horizontal, vertical, mirror and normal viewing
    • Eight languages selectable for user operation
    • Automatic backlight for buttons
    • Full function remote controller
    • Multiple video formats available: auto/PAL/NTSC
    • 13-pin: three cameras inputs
    • 22-pin: four cameras inputs, one video output and one audio output
    • Operates from 10 to 32V
    • Supports 12 or 24V automobile battery
    • Automatically switches to back-up, left, or right side camera views
    • Speaker available and users can control the sound level from control panel
    • The logo displays on the monitor when switched on and disappears while there is video signal
    • Automatic switch off if video signal lost in three minutes
  • Rearview camera:
    • Compact profile
    • Waterproof and vandalproof
    • Convenient angle adjustment
    • Infrared LED light: five
    • IR distance: 5m
    • High resolution
    • Multiple colors are optional: black, green, yellow, red and silver
    • Can be mounted on rear, front, or either side of vehicles
Payment Details:
  • Payment Terms:
    • Telegraphic Transfer (TT,T/T)
  • Minimum Order:
    • 1 to 99 Pieces
Delivery Details:
  • Lead Time:
    • 15 - 30 days


SharpVision-Leading Rear View Car Camera System China Manufacturer

Car Rear-view Camera System with 5.6-inch Digital Monitor and High Resolution Display


Model Number: MO-115D, CW-073

Key Specifications/Special Features:
  • 5.6-inch TFT LCD color rear-view monitor with digital screen
  • TFT LCD monitor with wide viewing angle and high resolution display
  • Picture image may be adjusted for horizontal, vertical, mirror and normal viewing
  • Eight languages selectable for user operation
  • Automatic backlights for buttons
  • Full-function remote controller
  • Multiple video formats: auto, PAL and NTSC
  • 13-pin: three camera inputs
  • 22-pin: four camera inputs, video output and audio output
  • Operating voltage: 10 to 32V
  • Supports 12/24V automobile battery
  • Automatically switches to backup, left or right side camera views
  • Speaker is available and users can control the sound level from control panel
  • The logo displays on the monitor when switched on and disappears while there is video signal
  • Auto switch off if video signal lost in three minutes
  • Car camera features:
    • Waterproof and weather-resistant housing for outdoor use
    • Night vision and day/night sensor for automatic adjustment
    • IR distance: 15m
    • Infrared LED light: 18
    • Mirror/normal image switch
    • Distance label selectable to be open or closed
Payment Details:
  • Payment Terms:
    • Telegraphic Transfer (TT,T/T)
  • Minimum Order:
    • 1 to 99 Pieces
Delivery Details:
  • FOB Port:
    • Guangzhou
  • Lead Time:
    • 15 - 30 days


SharpVision-Leading Rear View Car Camera System China Manufacturer

Car Rear-view Camera System with Mini Eye IR Camera and 5-inch Digital Touch Button Monitor


Model Number: MO-119D, CW-644


Key Specifications/Special Features:
  • Rear-view camera:
    • Compact profile
    • Waterproof and vandalproof
    • Convenient angle adjustment
    • Infrared LED light: five
    • IR distance: 5m
    • High-resolution
    • Multiple colors are optional: black, green, yellow, red, and silver
    • Can be mounted on rear, front, or either side of vehicles
  • LCD monitor:
    • Five inches TFT LCD color monitor with digital screen
    • Control the monitor with finger tips on the touch button system
    • TFT LCD monitor with wide view angle and high-resolution display
    • Picture image adjustable for horizontal, vertical, mirror, and normal viewing
    • Eight languages selectable for user operation
    • Automatic backlighting for buttons
    • Full function remote control
    • Multiple video formats available: auto/PAL/NTSC
    • Up to three AV inputs
    • On-board speaker
    • Operates from 10 to 32V
    • Supports 12 or 24V automobile battery
    • Automatically switches to back-up, left, or right side camera views
  • All trademarks shown here are for reference purposes only. They are the property of their respective owners, and we are not authorized to sell items bearing such trademarks.
Payment Details:
  • Payment Terms:
    • Telegraphic Transfer (TT,T/T)
  • Minimum Order:
    • 1 to 99 Pieces
Delivery Details:
  • FOB Port:
    • Guangzhou
  • Lead Time:
    • 15 - 30 days


SharpVision-Leading Rear View Car Camera System China Manufacturer

Car Backup System with 5.6-inch Digital LCD Monitor and License Plate Camera with IR


Model Number: MO-115D, CW-646


Key Specifications/Special Features:
  • 5.6-inch TFT LCD color rear-view monitor with digital screen
  • TFT LCD monitor with wide viewing angle and high resolution display
  • Picture image may be adjusted for horizontal, vertical, mirror, and normal viewing
  • Eight languages selectable for user operation
  • Automatic backlights for buttons
  • Full-function remote controller
  • Multiple video formats: auto, PAL, and NTSC
  • 13-pin: three camera inputs
  • 22-pin: four camera inputs, video output, and audio output
  • Operating voltage: 10 to 32V
  • Supports 12/24V automobile battery
  • Automatically switches to backup, left or right side camera views
  • Speaker is available and users can control the sound level from control panel
  • The logo displays on the monitor when switched on and disappears while there is video signal
  • Auto switch off if video signal lost in three minutes
  • License plate camera:
    • Night vision
    • Waterproof camera
    • Easy to install
    • Super wide angle (180°)
    • Super low illumination
    • Distance label selectable to be open or closed
    • Black and silver housing are available
    • All trademarks shown here are for reference purposes only. They are the property of their respective owners, and we are not authorized to sell items bearing such trademarks.
    Payment Details:
    • Payment Terms:
      • Telegraphic Transfer (TT,T/T)
    • Minimum Order:
      • 1 to 99 Pieces
    Delivery Details:
    • FOB Port:
      • Guangzhou
    • Lead Time:
      • 15 - 30 days

SharpVision-Leading Rear View Car Camera System China Manufacturer

Vehicle Rearview System with 5.6-inch Digital LCD Monitor and 180° Super Wide Angle Camera



 Model Number: MO-115D, CW-639


Key Specifications/Special Features:
  • Features:
    • 5.6-inch TFT LCD color rearview monitor with digital screen
    • TFT LCD monitor with wide view angle and high resolution display
    • Picture image may be adjusted for horizontal, vertical, mirror and normal viewing
    • Eight languages selectable for user operation
    • Automatic backlight for buttons
    • Full-function remote controller
    • Multiple video formats available: automatic, PAL and NTSC
    • 13-pin: three cameras input
    • 22-pin: four cameras input, one video output and one audio output
    • Voltage: 10 to 32V
    • Supports 12 or 24V automobile battery
    • Automatically switches to back-up, left, or right side camera views
    • Speaker available and users can control the sound level from control panel
    • The logo displays on the monitor when switched on, and disappears while there is video signal
    • Automatic switch off if video signal lost in three minutes
  • Rearview camera:
    • Super wide angle: 180°
    • Automatic heating when the camera's running temperature is below 10 degrees Celsius (optional)
    • Distance label selectable to be open or closed
    • Waterproof and weather resistant housing for outdoor use
    • Excellent night vision
    • IR distance: approximately 10m
    • Infrared LED light: 12
    • Mirror/normal image switch (depending on the chips)
  • All trademarks shown here are for reference purposes only. They are the property of their respective owners, and we are not authorized to sell items bearing such trademarks.
Payment Details:
  • Payment Terms:
    • Letter of Credit (LC, L/C)
  • Minimum Order:
    • 1 to 99 Pieces
Delivery Details:
  • FOB Port:
    • Guangzhou
  • Lead Time:
    • 15 - 30 days


SharpVision-Leading Rear View Car Camera System China Manufacturer

Reversing Camera System with 10 to 32V Operating Voltage and Automatic Backlights for Buttons


Model Number: MO-115D, CW-642

Key Specifications/Special Features:
  • 5.6-inch TFT LCD color rear-view monitor with digital screen
  • TFT LCD monitor with wide viewing angle and high resolution display
  • Picture image may be adjusted for horizontal, vertical, mirror and normal viewing
  • Eight languages selectable for user operation
  • Automatic backlights for buttons
  • Full-function remote controller
  • Multiple video formats: automatic, PAL and NTSC
  • 13-pin: three camera inputs
  • 22-pin: four camera inputs, video output and audio output
  • Operating voltage: 10 to 32V
  • Supports 12/24V automobile battery
  • Automatically switches to backup, left or right side camera views
  • Speaker is available and users can control the sound level from control panel
  • The logo displays on the monitor when switched on and disappears while there is video signal
  • Auto switch off if video signal lost in three minutes
  • Rear view camera:
    • Night vision is available
    • Waterproof camera
    • Easy to install
    • Super wide angle (180 degrees)
    • Super low illumination
    • Distance label selectable to be open or closed
    • Black and silver housing are available
  • All trademarks shown here are for reference purposes only. They are the property of their respective owners, and we are not authorized to sell items bearing such trademarks.
Payment Details:
  • Payment Terms:
    • Letter of Credit (LC, L/C)
  • Minimum Order:
    • 1 to 99 Pieces
Delivery Details:
  • FOB Port:
    • Guangzhou
  • Lead Time:
    • 15 - 30 days

SharpVision-Leading Rear View Car Camera System China Manufacturer

Thursday, July 19, 2012

Car Rear-view System with 7-inch Digital Touch Button Monitor and Cameras

Car Rear-view System with 7-inch Digital Touch Button Monitor and Cameras
Car Rear-view System 7-inch Touch Button Monitor Cameras

Model Number: MO-121D, CW-086, CS-401


Key Specifications/Special Features:
  • Car Rear-view System

  • With touch button monitor
  • 7-inch TFT LCD color monitor with digital screen
  • Automatic backlighting for buttons
  • Control the monitor with finger tips on the touch button system
  • With wide view angle and high resolution display
  • Picture image may be adjusted for horizontal, vertical, mirror, and normal viewing
  • Multiple languages: English, French, Portuguese, Spanish, Russian, Dutch, German, and Italian
  • Full function remote controller
  • Multiple video formats: PAL /auto/NTSC
  • 13-pin: 3 cameras inputs
  • 22-pin: 4 cameras inputs, 1 video output, and 1 audio output
  • Operating voltages: 10 to 32V
  • Supports 12V or 24V automobile battery
  • With built-in speaker
  • Automatically switches to backup, left/right side camera views
  • Reversing camera CW-086:
    • Waterproof and weather-resistant housing
    • Ideal for outdoor use
    • Night vision available, day/night sensor for automatic adjustment
    • IR distance: 22m
    • Infrared LED light: 28
    • Mirror/normal image switch (depending on the chips)
    • Distance label selectable to be open/closed
  • Side view camera CS-404:
    • Waterproof and weather-resistant housing for outdoor use
    • Night vision available
    • IR distance: 8m
    • Day/night sensor for automatic adjustment
Payment Details:
  • Payment Terms:
    • Telegraphic Transfer (TT,T/T)
  • Minimum Order:
    • 1 to 99 Pieces
Delivery Details:
  • FOB Port:
    • Guangzhou
  • Lead Time:
    • 15 - 30 days

SharpVision-Leading Rear View Car Camera System China Manufacturer

Car Camera System with 5.6-inch LCD Rear-view Monitor and Automatic Shutter Camera

Car Camera System with 5.6-inch LCD Rear-view Monitor and Automatic Shutter Camera
Car Camera System with 5.6-inch LCD Rear-view Monitor

Model Number: MO-115D, CW-635M

Key Specifications/Special Features:
  • Specifications:
    • Monitor:
      • 5.6-inch TFT LCD color monitor with digital screen
      • TFT LCD monitor with wide view angle and high resolution display
      • Picture image may be adjusted for horizontal, vertical, mirror and normal viewing
      • 8 languages selectable for user operation
      • Automatic backlight for buttons
      • Full function remote controller
      • Video formats: automatic, PAL and NTSC
      • 13-pin: 3 cameras input
      • 22-pin: 4 cameras input, video and audio output
      • Operates from 10 to 32V
      • Supports 12 or 24V automobile battery
      • Automatically switches to backup, left or right side camera views
      • Speaker available and users can control the sound level from control panel
      • The logo displays on the monitor when switched on and disappears while there is video signal
      • Automatic switch off if video signal lost in 3 minutes
    • Camera:
      • Streamlined appearance
      • Compact size for more convenient installation
      • Waterproof and vandalproof
      • Night vision available
      • IR distance: 12m
      • Infrared LED light: 10
      • Mirror/normal image switch (depending on chips)
      • Distance label selectable to be open or closed
  • All trademarks shown here are for reference purposes only. They are the property of their respective owners, and we are not authorized to sell items bearing such trademarks.
Payment Details:
  • Payment Terms:
    • Letter of Credit (LC, L/C)
  • Minimum Order:
    • 1 to 99 Pieces
Delivery Details:
  • FOB Port:
    • Guangzhou
  • Lead Time:
    • 15 - 30 days

SharpVision-Leading Rear View Car Camera System China Manufacturer

Car Backing-up System with 7-inch Digital Touch Button Monitor and Backup Camera

Car Backing-up System with 7-inch Digital Touch Button Monitor and Backup Camera
Car Backing-up System 7-inch Digital Touch Button Monitor

Model Number: MO-121D, CS-404, CW-639

Key Specifications/Special Features:
  • Rear-view monitor:
    • 7-inch TFT LCD color monitor with digital screen
    • Automatic backlighting for buttons
    • Control the monitor with finger tips on the touch button system
    • TFT LCD monitor with wide view angle and high resolution display
    • Picture image may be adjusted for horizontal, vertical, mirror, and normal viewing
    • Multi-languages of display available: English, French, Portuguese, Spanish, Russian, Dutch, German and Italian
    • Mirror and normal image switch available
    • Full-function remote controller
    • Multiple video formats available: PAL/auto/NTSC
    • 13-pin: three cameras inputs
    • 22-pin: four cameras inputs, one video output, and one audio output
    • Operates from 10 to 32V
    • Supports 12 or 24V automobile battery
    • Built-in speaker
    • Automatically switches to backup, left or right side camera views
    • Backup camera
    • Super wide angle (180°)
    • Automatic heating when the camera's running temperature is below 10℃ (optional)
    • Distance label selectable to be open or closed
    • Waterproof and weather-resistant housing for outdoor use
    • Excellent night vision
    • IR distance: approximately 10m
    • Infrared LED light: 12
    • Mirror/normal image switch (depending on the chips)
    Payment Details:
    • Payment Terms:
      • Telegraphic Transfer (TT,T/T)
    • Minimum Order:
      • 1 to 99 Pieces
    Delivery Details:
    • FOB Port:
      • Guangzhou
    • Lead Time:
      • 15 - 30 days
SharpVision-Leading Rear View Car Camera System China Manufacturer

Car Rear-view Camera System with 5.6-inch LCD Monitor and Wide Viewing Angle

Car Rear-view Camera System with 5.6-inch LCD Monitor and Wide Viewing Angle
Car Rear-view Camera System with 5.6-inch LCD Monitor

Model Number: MO-115D, CW-635


Key Specifications/Special Features:
  • Specifications:
    • LCD monitor:
      • 5.6-inch TFT LCD color rear-view monitor with digital screen
      • With wide viewing angle and high resolution display
      • Picture image may be adjusted for horizontal, vertical, mirror and normal viewing
      • Eight languages selectable for user operating
      • Automatic backlight for buttons
      • Full-function remote controller
      • Video format: automatic/PAL/NTSC
      • 13-pin: three cameras input
      • 22-pin: four cameras input, one video output and one audio output
      • Works with 10 to 32V voltage
      • Supports 12V or 24V automobile battery
      • Automatically switches to backup, left or right side camera views
      • Speaker available and users can control the sound level from control panel
      • Logo displays on the monitor when switched on, and disappears while there is video signal
      • Auto switch off if video signal lost in three minutes
    • Rear-view camera:
      • Wide viewing angle: 180°
      • Automatic heating when the camera running temperature is below 10°C (optional)
      • Distance label selectable to be open or closed
      • Waterproof and weather resistant housing for outdoor use
      • Night vision available, day/night sensor for automatic adjustment
      • IR distance: approximately 10m
      • Infrared LED light: 12
      • Mirror/normal image switch (depending on the chips)
    • All trademarks shown here are for reference purposes only. They are the property of their respective owners, and we are not authorized to sell items bearing such trademarks.
    Payment Details:
    • Payment Terms:
      • Telegraphic Transfer (TT,T/T)
    • Minimum Order:
      • 1 to 99 Pieces
    Delivery Details:
    • FOB Port:
      • Guangzhou
    • Lead Time:
      • 15 - 30 days

SharpVision-Leading Rear View Car Camera System China Manufacturer
